Complete cable management solutions including ties, clips, conduits, glands and accessories
High-quality nylon cable ties for bundling, securing, and organizing cables and wires in various applications.
Material
Nylon 6.6
Temperature Range
-40°C to +85°C
UL Rating
UL 94V-2
Colors
Natural, Black, Colored
Standard Cable Ties:
| Length |
Width |
Min. Loop Tensile |
Applications |
| 100mm |
2.5mm |
8 kg |
Small wire bundles |
| 150mm |
3.6mm |
18 kg |
Medium cables |
| 200mm |
4.8mm |
36 kg |
Power cables |
| 300mm |
7.6mm |
55 kg |
Heavy duty bundles |
| 450mm |
8.9mm |
115 kg |
Industrial applications |
Special Types:
Releasable Ties
Mountable Ties
Marker Ties
Push Mount Ties
Heavy Duty Ties
Stainless Steel Ties
Beaded Ties
Double Headed Ties
Key Features:
- Self-locking mechanism
- UV resistant for outdoor use
- Flame retardant options
- Weather resistant
- Corrosion proof

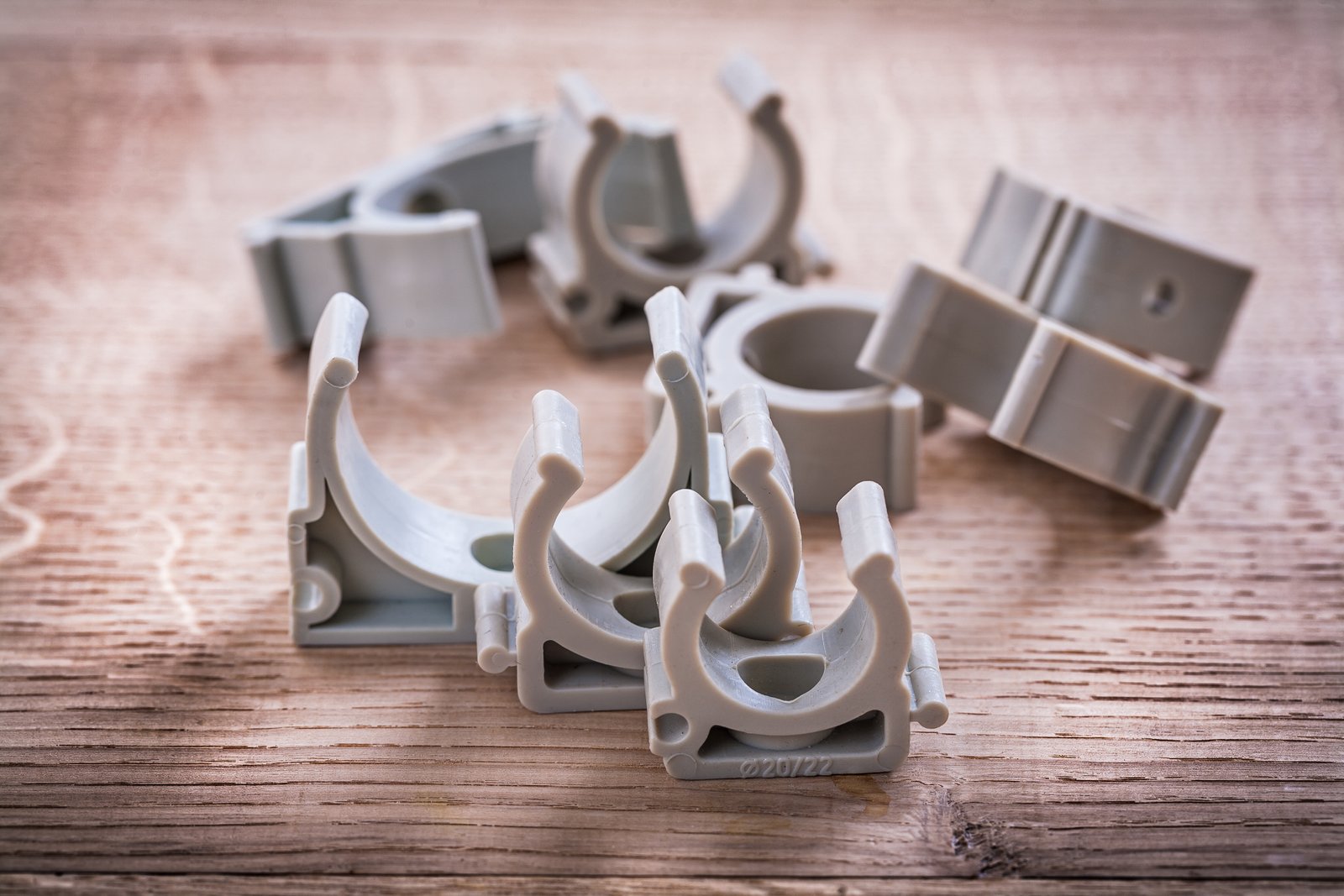

Secure cable routing and organization solutions for neat and professional installations.
Adhesive Back Clips:
- Self-adhesive backing: Easy installation
- Sizes: 5mm, 10mm, 15mm, 20mm diameters
- Colors: White, Black, Transparent
- Applications: Wall mounting, Panel organization
Mini Clips (3-6mm)
Medium Clips (7-12mm)
Large Clips (13-25mm)
Screw Mount Clips:
- Screw mounting: Permanent installation
- Material: Nylon, PVC, Metal
- Holders: Single, Double, Multiple cables
- Applications: Industrial, Heavy duty
Single Cable Clips
Multi-cable Clamps
P-clips
Saddle Clips
Cable Management Accessories:
- Cable ducts and channels
- Cable trays and ladders
- Cable trunking systems
- Cable spiral wrap
Installation Benefits:
- Neat and organized wiring
- Easy maintenance access
- Improved air circulation
- Enhanced safety

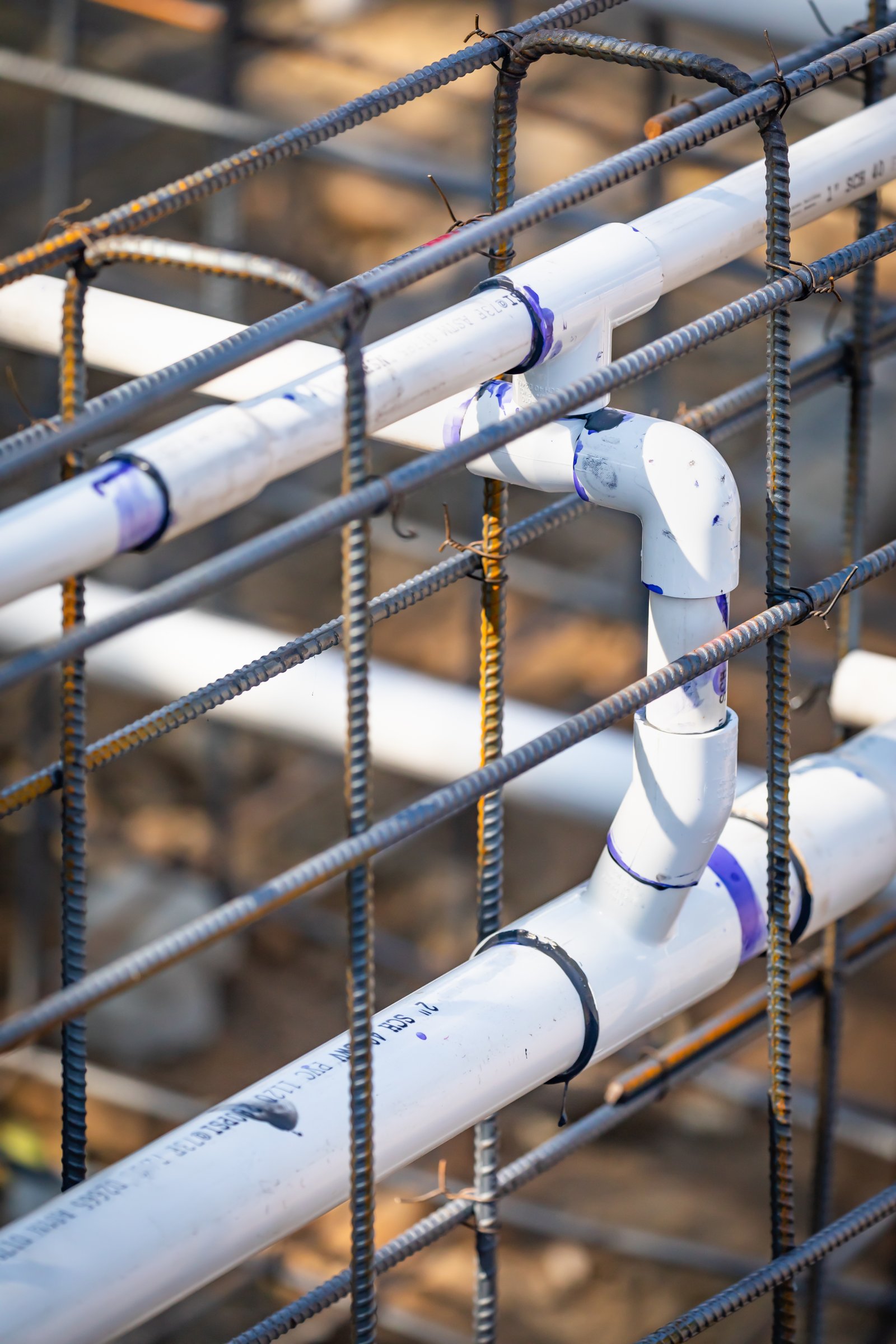

Electrical conduit pipes for protecting cables and wires from physical damage, moisture, and chemicals.
PVC Conduit Pipes:
Material
UPVC
Temperature
-5°C to +60°C
Colors
White, Grey
Standards
IS 9537
PVC Conduit Sizes:
16mm
20mm
25mm
32mm
40mm
50mm
63mm
Flexible Conduit Pipes:
Material
PVC Coiled
Flexibility
Highly Flexible
Applications
Movable connections
Protection
Corrosion resistant
Flexible Conduit Types:
Liquid Tight
Metallic Flexible
Non-metallic Flexible
Split Conduit
Rigid Conduit:
- Maximum protection
- Heavy duty applications
- Industrial installations
- High voltage areas
Conduit Fittings:
- Couplers and connectors
- Bends and elbows
- Junction boxes
- End caps and seals
Installation Types:
- Surface mounted
- Concealed in walls
- Underground
- Outdoor exposed
Secure cable entry devices for electrical enclosures, providing strain relief and environmental sealing.
Brass Cable Glands:
Material
Brass (Nickel Plated)
IP Rating
IP68
Standards
IEC 62444
Thread Types
PG, NPT, Metric
Brass Gland Sizes:
PG7
PG9
PG11
PG13.5
PG16
PG21
PG29
Nylon Cable Glands:
Material
Nylon 6.6
IP Rating
IP66/IP67
Colors
Black, Grey, White
Applications
Indoor, Light duty
Special Gland Types:
Double Compression
Armoured Cable Glands
EMC Glands
Hazardous Area Glands
Flexible Conduit Glands
Gland Selection Guide:
- Cable Diameter: Match gland size to cable O.D.
- Environment: Indoor/Outdoor, Dry/Wet areas
- Protection: Required IP rating
- Application: Standard/Hazardous areas
Installation Benefits:
- Strain relief for cables
- Environmental sealing
- EMC protection
- Mechanical protection
Cable end termination devices for protecting wire strands and ensuring secure connections in terminals.
Insulated Ferrules:
Material
Copper/Nylon sleeve
Insulation Color
Color coded
Standards
DIN 46228
Applications
Screw terminals
Common Ferrule Sizes:
0.25mm²
0.5mm²
1.0mm²
1.5mm²
2.5mm²
4.0mm²
6.0mm²
Bootlace Ferrules:
Type
Single wire
Tin Plated
Yes
Insulation
PVC sleeve
Length
8mm, 10mm, 12mm
Ferrule Types:
Insulated Ferrules
Non-insulated Ferrules
Twin Ferrules
Flag Type Ferrules
Fork Type Ferrules
Ring Type Ferrules
Benefits of Using Ferrules:
- Prevents wire strand fraying
- Improves electrical contact
- Reduces maintenance issues
- Enhances safety
- Standardizes connections
- Color coding for identification
Installation Tools:
- Crimping tools
- Wire strippers
- Ferrule cutting tools
- Application kits
- Wire markers
- Organizer boxes
Cable Management Selection Guide
| Application |
Recommended Product |
Key Features |
Standards |
| Cable Bundling |
Nylon Cable Ties |
Various lengths, Self-locking, UV resistant |
UL 94V-2 |
| Cable Routing |
Cable Clips & Clamps |
Adhesive/Screw mount, Multiple sizes |
RoHS Compliant |
| Cable Protection |
Conduit Pipes |
Rigid/Flexible, Weather resistant |
IS 9537, IEC 61386 |
| Panel Entry |
Cable Glands |
Brass/Nylon, IP rated, Strain relief |
IEC 62444 |
| Wire Termination |
Ferrules & Thimbles |
Insulated/Non-insulated, Color coded |
DIN 46228 |
